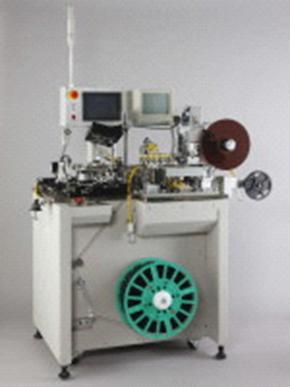

SUPER HIGH SPEED TAPING MACHINE

(NCT-3900)



NCT-3900 is a super high speed machine that tests the electrical characteristics of chips loaded from a parts feeder, automatically rejects faulty chips, sorts out good chips according to the polarity, aligns them to the center, inserts to embossed carrier tape, checks the insert position with image judge device and seals closely with cover tape by heat.

The processing capacity has been considerably improved from the existing machine, achieving 0.09 secs per unit.

Adoption of a touch panel method enables you to set taping program input for sorting specifications as you like.



· Applicable Device = chip type device

· Carrier Tape Width = 8mm

· Loader = Parts Feeder

· Seal Method = Heat Press Reciprocating Method

· Cycle Time (UPH) = max 0.09 secs/pc (including 30mSec Test Time) or 40K UPH

· Option = Visual Check Unit, Auto Reel Changer

· Size = W970 x H1,620 x D800 (mm)
